What is the difference between ductile iron and cast iron castings

Chemical differences

Elemental iron, characterized by its lustrous grayish appearance, is highly prone to oxidation or rusting when exposed to damp air, making it rare to find in its pure form. As a result, iron predominantly exists within iron oxides—minerals like hematite, magnetite, and taconite—and constitutes 34.6% of the Earth's mass, more than any other element. Its abundance makes it the most widely refined metal, accounting for 90 percent of all metal refined globally.

Through millennia, metallurgists have optimized iron's desirable properties by developing alloys, mixing refined iron with small amounts of other elements. In cast iron variants, graphite carbon is the second most prevalent element, making up about 3 to 5 percent of the alloy. Alloys with lower graphite percentages are typically classified as steel.

Grey cast iron, which comprises 96 to 98 percent iron and 2 to 4 percent carbon with a trace amount of silicon, has been used for centuries and is still the predominant type produced by foundries today. Ductile cast iron, a newer metallurgical development introduced in the 1940s, typically contains about 3.2 to 3.6 percent carbon and 2.2 to 2.8 percent silicon. It also includes elements like manganese, magnesium, phosphorus, sulfur, and sometimes copper. Magnesium, in particular, is vital as it acts as a nodulizer, which will be discussed in further detail in the following section.

Physical property differences

In terms of physical differences, the primary distinction between ductile iron and grey cast iron lies in the arrangement of the graphite microstructure. In gray cast iron, graphite takes the form of flakes that are distributed throughout the structure as the metal cools slowly. Under excessive tension, these flakes slide and stack against each other like miniature tectonic plates, creating fault lines where the casting can splinter and crack.

In contrast, ductile cast iron features a microstructure where graphite forms spheroidal nodules due to the influence of a nodulizer, typically magnesium, though sometimes tellurium or cerium is used. This is why ductile iron is also known as nodular iron. These nodules can slip past one another at a microscopic level, which enables ductile iron castings to bend or be pulled with a significantly reduced risk of fracturing. When discussing nodularity in castings, it refers to the density of these graphite nodules which enhances the yield strength, tensile strength, and elongation of the material.

Applications differences of ductile iron and cast iron

The applications of ductile iron castings and gray cast iron castings vary significantly due to their differing mechanical properties and structural characteristics. Each type of cast iron is suited to specific uses based on its strength, durability, and other physical traits.

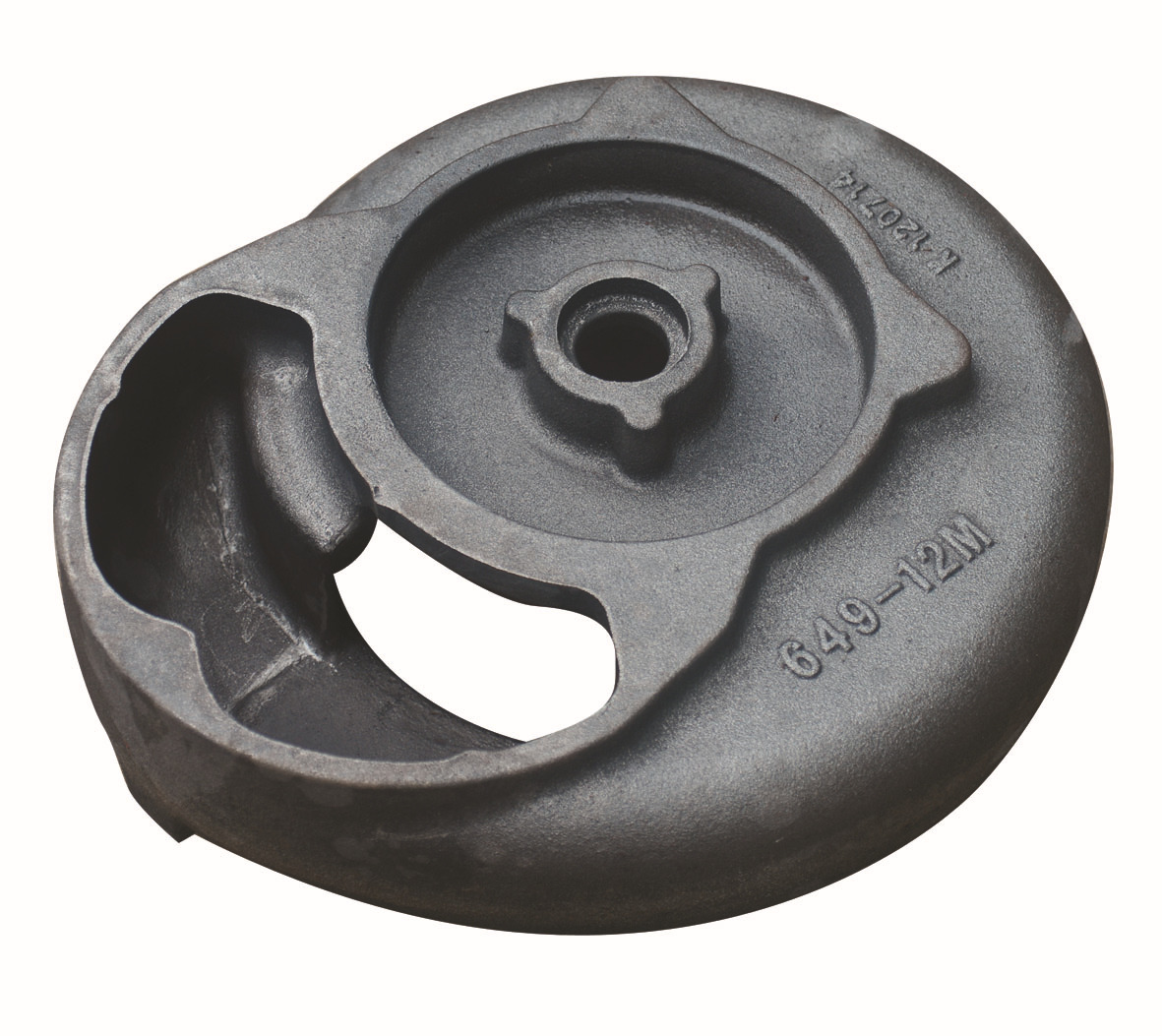

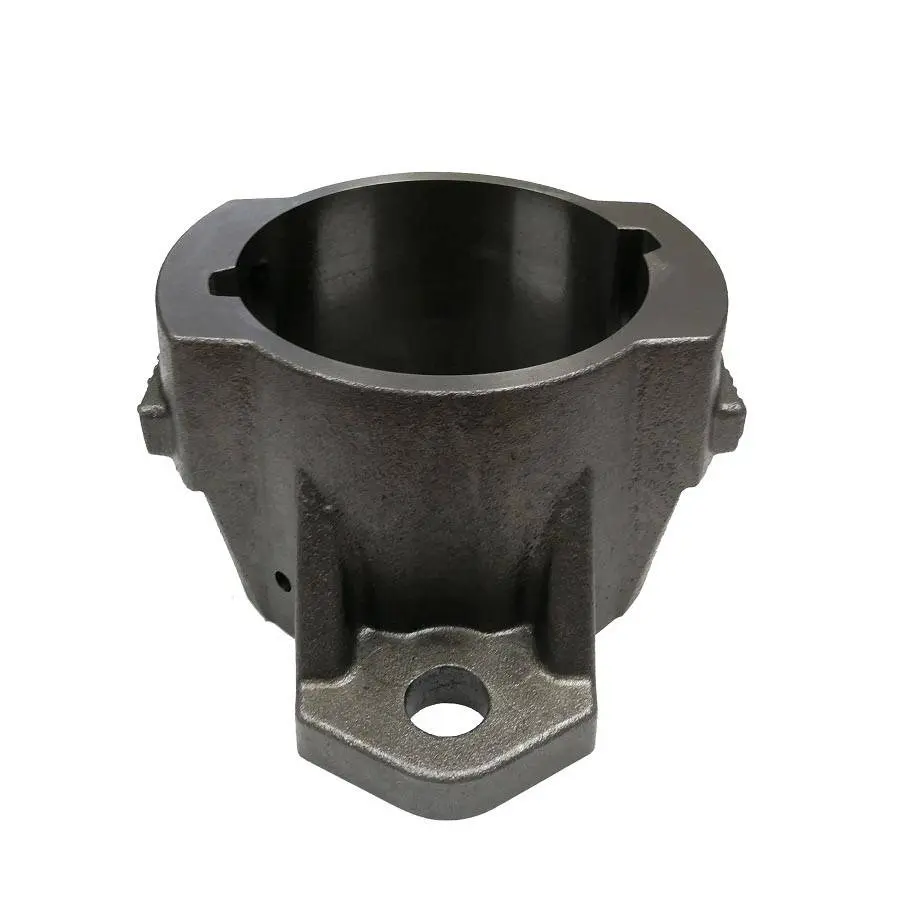

Ductile Iron Castings Applications

Ductile iron, with its remarkable tensile strength and ability to deform without fracturing, is particularly well-suited for applications requiring durability and shock absorption. This makes it ideal for components that undergo high stress and need to resist failure under pressure. Common uses of ductile iron include:

• Automotive parts: Such as axles, steering knuckles, crankshafts, and piston rings, where strength and ductility are paramount.
• Pipe and pipe fittings: Used extensively in water and wastewater systems due to its strength, ductility, and corrosion resistance.
• Gears and sprockets: Especially in heavy machinery and automotive applications where the gears need to withstand significant force.
• Heavy-duty industrial equipment: Ductile iron is used for parts in machines that require high strength and toughness.

Gray Cast Iron Castings Applications

Gray cast iron, while not as strong or ductile as ductile iron, is still incredibly useful due to its excellent damping properties and wear resistance. It is also generally more cost-effective to produce. Its typical applications include:

• Machine tool frames: The natural damping properties of gray cast iron make it ideal for reducing vibrations in heavy machinery and tool frames.
• Automotive components: Used in engine blocks, cylinder heads, and brake parts where the material’s ability to absorb and dissipate heat is crucial.
• Construction hardware: Including counterweights, manhole covers, and building supports that benefit from cast iron’s high compressive strength.Cookware: The excellent heat distribution and retention properties of gray cast iron are perfect for culinary applications such as pans and griddles.

Each type of cast iron offers unique advantages that make it suitable for different industries and applications. Ductile iron’s resilience and flexibility allow it to perform well under dynamic and thermal stresses, making it a preferred material for parts that need to last and perform reliably over time. In contrast, gray cast iron’s stability, and machining ease make it a go-to material for applications where vibration damping and wear resistance are necessary but extreme ductility is not required. These characteristics guide manufacturers in selecting the appropriate type of cast iron to match the specific needs of their projects, ensuring optimal performance and cost-efficiency.

In conclusion, the choice between ductile iron castings and gray cast iron castings depends significantly on the specific requirements of the application, each offering distinct advantages in terms of durability, cost-effectiveness, and mechanical properties. Taiyuan Simis Investment Casting Co., Ltd. is adept at manufacturing both types of castings, utilizing advanced techniques such as investment casting, Sand Casting, and Precision Machining to meet diverse industry needs. Our extensive experience and state-of-the-art facilities enable us to produce high-quality ductile and cast iron components, ensuring that whether our clients require the shock resistance of ductile iron or the vibration damping of gray cast iron, we deliver exceptional results that align with their project specifications and performance expectations.
